种类与简单介绍：Purpose and introduction

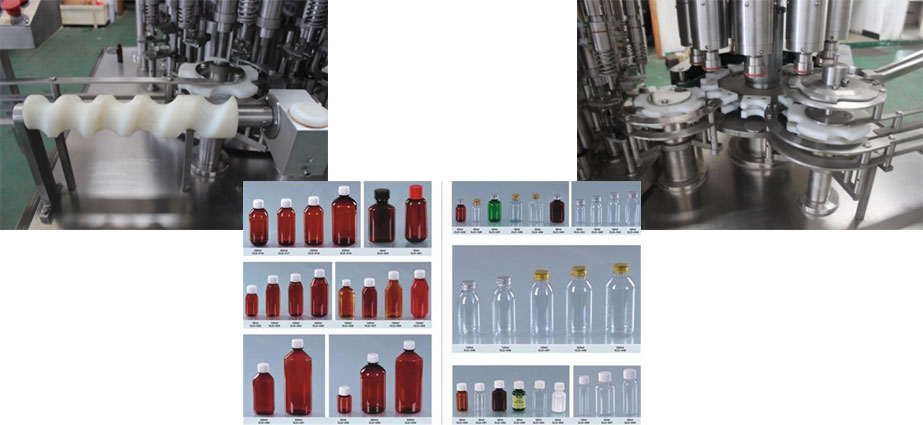

滤油机适于于对30-500ML国产安全塑胶板材瓶子、塑胶板材瓶的装灌生产销售的线塑封处。选用往来往来式活赛实施装灌生产销售的线，电磁波振动送盖，就能够轧盖(金屬式)或旋盖(塑胶板材盖)塑封处，就能够和先后的生产销售的制作工序设施设备连接起来组成的生产销售的线，最后就能够选用百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

显著特点：characteristic

装量精确性，杜尽渗漏。缺瓶不装罐。 直流变频空调控速。 自主的显视记数的功效。 整套装置均按GMP特殊要求制定。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技術性能参数/technical parameters：

型号 model	NQGX30-500
采用要求Cutting dimension	30-500ml
盛产专业能力Production capacity	80-200瓶/分（罐/钟头）80-200 bottles/min (cans/min)
包装表面粗糙度 Filling accuracy	≤±1%
交流电源 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
设备净含量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
