用处与简绍/Brief Introduction：

该机型器型用到很三通管装罐阀，采使用水剂和膏霜类护肤品的装罐，很对高黏度物品（如浓酱、尖椒酱、番茄酱、种衣剂、微乳剂、悬浮按钮剂等）的疗效相比显然，且精密度较高。该机型器型用到PLC可程序编程调节，配上6寸大触模屏组队工具栏机器，颁布自主进瓶，自主装罐，自主出瓶，家电，气动平衡元安全装置均用到亚太企业，切实保障了精湛的效果和耐久比较稳定的机械性能。本机器结构的简约，实操快捷，是我国非常完美的面向高黏度物品的装罐机器。该机型器型购置了严防渗漏与金属金属拉丝的装罐闷头，切实保障装罐完成后无渗漏，无金属金属拉丝。Filling valve, the machine USES special tee is suitable for the filling agent and cream products, especially for high viscosity material (such as thick sauce, chili sauce, tomato sauce, indicated, micro emulsion, suspending agent, etc.) of the effect is obvious, and high precision. The machine USES PLC programmable control, with 6 inch touch screen man-machine interface system, implements the automatic into the bottle, automatic filling, automatic bottle, electric, pneumatic components adopt international brand, to ensure that the performance of the outstanding quality and lasting stability. This equipment has simple structure, convenient operation, is the ideal filling equipment for high viscosity material. The machine is equipped with prevent drip with wire filling cocks, ensure filling after the completion of a drip-tight, no drawing.

特性/Characteristic：

◆抑制整体化——分为三菱数控整体PLC抑制整体化，罐装含量随即调准。Control system adopt mitsubishi PLC control system, filling dose random tweaks◆操控用户软件界面——6寸大彩屏手触式操控用户软件界面，形象化比较简单、健康信得过Interface - 6 inches color hand touch interface operation, intuitive and simple, safe and reliable◆功效完善——开料有防渗漏装备，可会按照材料性能特点具有下潜包装功效。（此功效能够应用）Improvements - blanking drip tight device, according to the material properties have diving filling function. (this function can be chosen)◆电器产品组件——均应用国际联盟出名品店牌，有效确保装备的安全安全、精确度高；Electrical components adopt international famous brand, to ensure the equipment safe and reliable, high accuracy;◆机戒结构件——产品结构件均所使用质量上乘304不锈不锈钢装饰管钢板网作,假如有需要接触的面积物料管理可不可以所使用316L另计价用。Mechanical parts, machine parts are made of high quality 304 stainless steel material can be used if necessary contact 316 l in extra costs.◆记数器测量——实时视频记数器，对办公总产量准确产生。Counting test, real-time, intuitive reflect the yield of work.◆包装的检测——无瓶不灌、瓶数欠缺不灌Bottle filling test - no bottle no filling, not enough◆维修保养实际情况——该机按照GMP符合要求，可轻松自在卸下来、进行维持清洁维修保养。Maintenance - the machine is in line with the GMP requirements, easy disassembly, cleaning maintenance.◆对换型号規格——替换装灌型号規格时，只需要简简单单设定，轻轻松松OK。Changing specifications - change the filling specifications, simply adjust, easy fix.◆节能搭配单——搭配单了节能整体布局完成后，使机械的进行操作坏境比较洁面安全。（此节能搭配单也可以配选）Environmental protection configuration, configuration framework of environmental protection, make the operation of the machine environment more clean sanitation. (the environmental protection configuration can be selected)

工艺指标/technical parameters：

罐装头数The number of filling head	8头（要选4、🧜6、8、10、1两个分装头）8 head (opti𒐪onal 4, 6, 8, 10, 12 filling head)

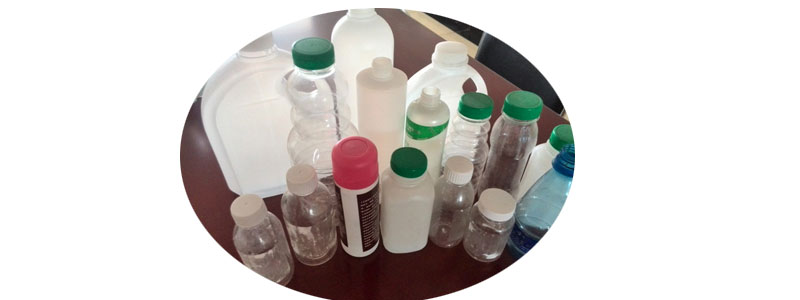

常用瓶径 Applicable bottles Drive	Ф33-Ф100 mm
压力容器检验精确度measure precision	±1%
罐装存储容量Canned capacity	150-1000ml
制作工作能力Production Capacity	2400-4000瓶/小时英文2400-4000   bottles per hour
气源压力bleed pressure	0.7-0.9mpa
电    源Power Supply	380 伏/50 HZ
总 功 率The total power	0.5 kw
外形尺寸 boundary dimension	6000×850×1800 mm
重    量Weight	500kg
