作用与简价/Brief Introduction：

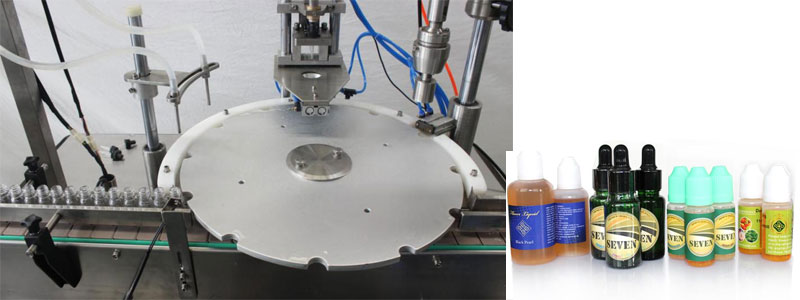

滤油机适宜于2-30ML繁多材質的一个圆形扁形塑料制品或破璃瓶的眼麻醉药装灌.滤油机由高地位精度凸轮轴轴测量范围培训机构保证测量范围等分盘地位上塞上盖;快极限速度凸轮轴轴传输保证旋盖头的调节功能;恒扭力旋盖;消化吸收泵剂量装灌;触感屏控制.无瓶不装灌,要加内塞,外盖.具地位准确,传输有序,养护小盖,剂量准.操作步骤比较简单等的特点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优点和缺点/Characteristic：

◆微新电脑更改、装量明确、操控简单方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机设备转动速度可实行无极直流变频控速。the mainframe running speed is stepless frequency conversion.◆生产方式量智能一定量掌控。the product quantity can be controlled. ◆多样出现问题提升工作(如低风压。无包装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆全半自动欠费基本功能，对指定导轨现身陆续无罐装、无内塞情况下可全半自动欠费。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

的技术性能指标/Main Technical Parameters：

适用性金桥铜业跨接线的截面积大小Filling Volume	2-30ml
制造力量Productivity	30🔯-60瓶❀/分  70-100瓶/分30-60bottles/min    70-100bottles/min
罐装高精准度Filling Precision	≤±1%
电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
定时上塞率Stoppering rate	≥99%
氧气减压阀Air Supply	1.3 m3/h    0.4-0.8Mpa
耗油率 Power	2.0 kw
POS机净重量Weight	550 kg
外表图片尺寸Dimension	1800*1000*1500mm
