的用途与详细介绍：/Purpose and introduction

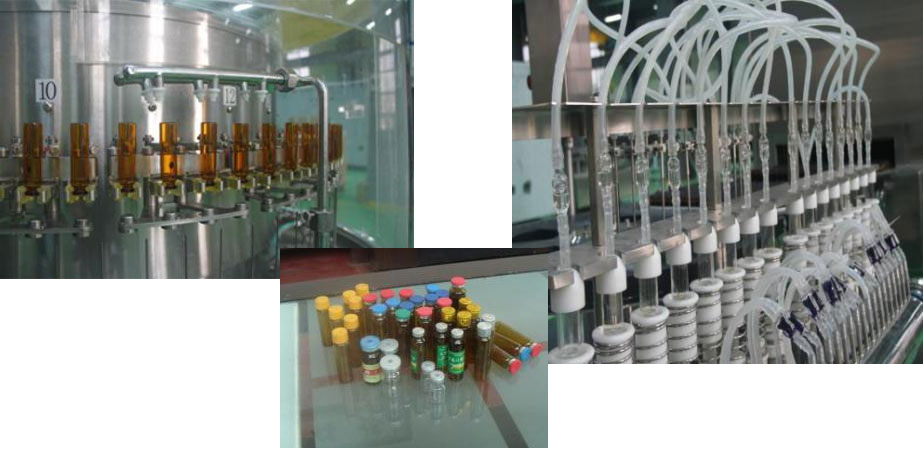

服食液洗烘灌轧协作线由落地超声冲洗心动图波洗瓶机、随道式暧风 间歇杀菌烤箱、服食液罐装制作线轧盖机等包含，好于 5-30ml 等不一规 格服食液瓶的制作。可结束对放射性药品制作中安瓿瓶淋水、超声冲洗心动图波冲洗、冲水、充 气、吹干杀菌、冷凝、罐装制作线、轧盖等生产工艺流程的协作正常运行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

亮点:/characteristic

◆洗瓶机用于机械制造手夹瓶，支持各种各样规格参数的空瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶利用水蒸汽喷针回转追踪定位放进去模式，洗结果好，不浪费的行为能源技术。并可设针架防震动保护装置，增进喷针放进去塑料瓶子的精确性度，增多断针想象情况；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶某个气水滤油器、喷针完成人格独立分离开来，不要了交叉点严重污染，符合国家GMP规范性要；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺旋轴前加裝响应块，有保护区螺旋轴，提高碎瓶意义Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶选择整体的国外一起带，无线连接拨块气流输送服用液，使用平稳可以信赖In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆干燥箱采用了红外线蒸汽加铜管，装饰管蒸汽加铜管多层蒸汽升温温湿度不规则性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装生产线轧盖机能选配瓷质泵、不锈钢板泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装生产线无瓶止灌，无瓶不轧盖职能。Pieces filling without bottle filling, no bottle no rolling function.◆整线通过PLC总调整、abb变频器器、体现屏屏调整技術，全自动正常运行动态稳定平衡稳定。体现屏屏可体现各单机手游的全自动正常运行工作状态下，各调整点的水流量、气压表、风压气压、温湿度等体现，各控住开关工作状态下和机械内部出现故障体现，机械内部出现故障个人诊断报告和机械内部出现故障研究及排除故障步骤。使全部研发加工进程超过全自动调整，联线兼备三机自动化稳定平衡裝置，做到研发加工教育均衡发展稳定。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.按照其客人的必须要，还可供配选：According to the needs of customers, but also available for selection:◆西门子软件、施耐德开关、西门子、台达等产品品牌操纵软件；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气负压、油温及彩超波抗弯强度、尘灰塑料颗粒、风速等级在线平台检查、短信报警、记录时间、印刷操作系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌检测屏蔽器系统软件。Mixer ORABS, CRABS, aseptic isolator system.

方法参数指标：technical parameters

支持規格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
分装高精度Filling accuracy(%)	≤ ± 2.5
灌装线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖优秀率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
